Important information on grid spacing!





The grid spacing of the bird’s mouth shelf support can be freely selected between 36 mm and 48 mm depending on your requirements. Other grid spacings are available upon request; any dimensions are possible!

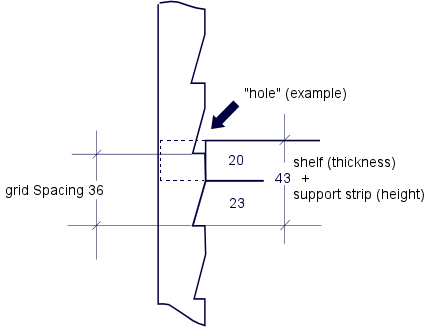

If you add up the thickness of the shelf and the height of the support strip and the sum is larger than the grid spacing of the bird’s mouth shelf support, this creates a “hole” in the corners of the shelf support.



To avoid creating this “hole” in the corners, the distance between the top edge of the support strip and the next notch should equal the thickness of the shelf or even be a little greater.

The maximum height of the support strip is 23 mm. However, this dimension can be smaller depending on the application and the visual requirements.



Finding the ideal grid spacing:

1. Select the height of the support strip (max. 23 mm) based on stability and visual aspects.

2. Add the thickness of the shelf to this dimension.

3. The result is your grid spacing, which should be noted on the order fax.

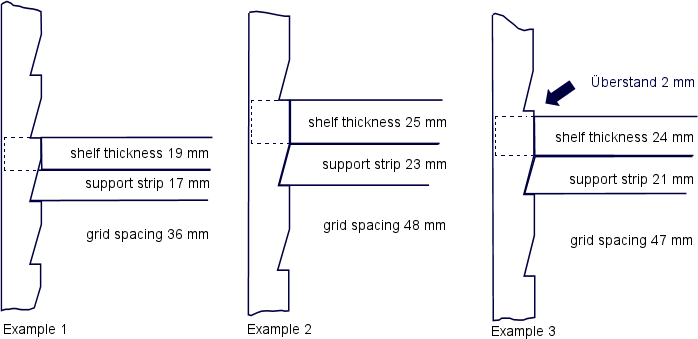

(Examples 1 and 2)

If you would like the next notch to protrude slightly (example 3), also add the desired protrusion and note this dimension on the order fax.



Give us a call if you have any questions:
+49 (0)89 271 76 60 (Wolf Jürgens)

Please note that we only speak German!
